Many engineers learn that a three-phase fault always produces the highest fault current. In most of the power system that is true, but it is not a rule. Fault current is set by the effective sequence-network impedance the fault sees. Wherever the zero-sequence impedance is lower than the positive-sequence impedance, a single-line-to-ground (SLG) fault produces more current than a three-phase fault. That happens at very common US locations: the grounded-wye side of delta-wye substation transformers, solidly grounded generators and transmission buses with several grounded transformers.

The four shunt fault types

Fault type	Sequence networks involved	Typical frequency of occurrence
Three-phase (LLL or LLLG)	Positive only	Least common, about 5% of faults
Line-to-line (LL)	Positive and negative in parallel	About 5 to 10%
Double line-to-ground (LLG)	Positive, with negative and zero in parallel	About 10 to 20%
Single line-to-ground (SLG)	Positive, negative and zero in series	Most common, about 70 to 80%

Location (illustrative)	Z1 = Z2	Z0	Three-phase	SLG	Ground current, LLG fault (3I0)
Solidly grounded generator	j0.20	j0.05	5.00	6.67	10.0
Grounded-wye side of a delta-wye transformer	j0.10	j0.03	10.00	13.04	18.8
138 kV substation bus with several grounded transformers	j0.020	j0.015	50.0	54.5	60.0

Short-circuit studies set the duty of circuit breakers, switchgear, bus bracing, cables, CTs, grounding systems and protective relays. Every one of those decisions depends on knowing the maximum fault current at each location and the minimum fault current that protection must still detect. This guide explains how each fault type is calculated with symmetrical components, why an SLG fault often exceeds a three-phase fault in US substations and generating plants, and how the results feed equipment ratings, grounding design and protection under IEEE and NERC practice.

Symmetrical components in brief

Any unbalanced set of three-phase currents can be expressed as the sum of three balanced sets:

Positive sequence (subscript 1): normal phase rotation; the only sequence present in balanced operation.
Negative sequence (subscript 2): reversed phase rotation, produced by unbalance.
Zero sequence (subscript 0): three equal, in-phase currents that can only flow if there is a return path through ground or a neutral.

Each system element has a positive-, negative- and zero-sequence impedance, Z1, Z2 and Z0. For transmission lines and transformers, Z1 and Z2 are usually equal. Z0 differs widely and depends on grounding, winding connections and the ground return path.

Fault current formulas

The formulas below use Vφ, the prefault line-to-neutral voltage (1.0 pu in per-unit calculations), and assume bolted faults unless noted.

Three-phase fault

Location	Why Z0 is low	Typical result
Grounded-wye terminals of delta-wye transformers	The delta winding supplies zero-sequence current internally; Z0 is roughly the transformer impedance alone, while Z1 also includes the source	SLG often exceeds three-phase by 5 to 30%
Solidly grounded generators	Generator X0 is typically much lower than its subtransient reactance	SLG can exceed three-phase by 20 to 40%
Transmission substations with several grounded-wye transformers or autotransformers	Multiple parallel zero-sequence paths	SLG often exceeds three-phase at the bus
Autotransformers with delta tertiaries	The tertiary provides a low-impedance zero-sequence path	Elevated SLG current on both voltage levels

Where Z0 is higher than Z1

Along overhead transmission and distribution lines: line Z0 is typically about three times Z1, so SLG current falls off faster than three-phase current with distance from the substation.
Impedance-grounded systems: neutral resistors or reactors add three times their impedance to Z0.
Ungrounded or delta systems: no zero-sequence path exists, and SLG current is limited to capacitive charging current.

Worked example 1: 138/13.8 kV distribution substation

Consider a typical US distribution substation.

Parameter	Value
138 kV source	20 kA three-phase, Z1 = j0.021 pu on 100 MVA
Transformer	30/40/50 MVA, delta 138 kV / grounded-wye 13.8 kV, Z = 10% on 30 MVA, or j0.333 pu on 100 MVA
Transformer zero-sequence impedance	About 85% of positive sequence for a three-legged core-form unit, j0.283 pu
Base current at 13.8 kV, 100 MVA	4,184 A
Z1 = Z2 at the 13.8 kV bus	j0.354 pu
Z0 at the 13.8 kV bus (solidly grounded)	j0.283 pu (the delta blocks the source zero-sequence contribution)

Fault at 13.8 kV bus	Solidly grounded	With 0.5 Ω neutral reactor
Three-phase	11.8 kA	11.8 kA
Line-to-line	10.2 kA	10.2 kA
Double line-to-ground, maximum phase current	12.3 kA	10.5 kA
Double line-to-ground, ground current (3I0)	13.6 kA	5.0 kA
Single line-to-ground	12.7 kA	7.1 kA

On the solidly grounded bus, the SLG fault produces 7% more current than the three-phase fault, and the largest ground current comes from the double line-to-ground fault. A small neutral reactor of only about 0.05 Ω would bring SLG current down to the three-phase level; a 0.5 Ω reactor reduces it by 40%. Many US utilities apply neutral reactors on distribution substation transformers specifically to limit SLG current while keeping the system effectively grounded.

Worked example 2: 138 kV transmission bus

At a 138 kV switching station with several grounded-wye transformers, Z1 = j0.020 pu and Z0 = j0.015 pu on 100 MVA (base current 418 A):

Three-phase fault: 1 ÷ 0.020 = 50.0 pu = 20.9 kA.
SLG fault: 3 ÷ (0.020 + 0.020 + 0.015) = 54.5 pu = 22.8 kA.
LLG ground current: 60.0 pu = 25.1 kA.

A breaker selected only on the three-phase fault would be underrated for the SLG fault duty if its margin was less than 9%.

Worked example 3: solidly grounded 13.8 kV generator

A 50 MVA, 13.8 kV generator with X″d = X2 = 0.15 pu and X0 = 0.05 pu on its own rating:

Three-phase fault: 6.67 pu = 13.9 kA.
SLG fault, solidly grounded: 3 ÷ 0.35 = 8.57 pu = 17.9 kA, 29% higher.
Neutral reactor to equalize: 3Xn = 0.45 − 0.35 = 0.10 pu, so Xn ≈ 0.033 pu, or about 0.13 Ω.

Generator windings and bracing are designed for the three-phase fault. IEEE C50.12 and C50.13 require that generator SLG fault current not exceed the three-phase value unless the machine is specifically designed for it. In practice, most large US generators connected through step-up transformers are high-resistance grounded, which limits ground fault current to a few amperes. Low-voltage-connected or bus-connected generators may use low-resistance or reactance grounding.

Effective grounding

US practice describes a system as effectively grounded when, at the point of fault:

Area	Why the highest fault type matters	US reference
Breaker interrupting and closing duty	Must cover the maximum of all fault types, with X/R correction	IEEE C37.010, C37.04, C37.13
Bus and equipment withstand	Mechanical forces and thermal duty depend on peak and RMS current	IEEE C37.20 series, IEEE 605
Ground grid design	Uses the maximum ground current (3I0), which may come from an LLG fault when Z0 is less than Z2, adjusted by the current division factor	IEEE 80
CT selection	CTs must avoid saturation for the maximum fault, including ground faults	IEEE C37.110, C57.13
Protection settings	Phase and ground elements need maximum and minimum fault currents for every fault type	IEEE C37.113 (lines), C37.91 (transformers), C37.102 (generators)
Arc flash	Uses bolted three-phase fault current as an input	IEEE 1584
Neutral grounding equipment	Neutral reactors, resistors and transformer neutrals sized for ground fault duty	IEEE C62.92, IEEE C57.32
System models	Accurate sequence data for short-circuit models	NERC MOD-032, PRC-027 coordination

Practical short-circuit study checklist

Collect complete sequence data: Z1, Z2 and Z0 for every source, line, transformer and generator, including winding connections and neutral grounding impedances.
Model mutual coupling between parallel transmission lines, which strongly affects zero-sequence current and ground relay reach.
Run all fault types — three-phase, line-to-line, double line-to-ground and SLG — at every bus.
Record ground current (3I0) separately from phase current.
Include future system growth and maximum generation dispatch for equipment duty.
Run minimum fault cases, including fault resistance and minimum generation, for protection sensitivity.
Apply X/R corrections using IEEE C37.010 or C37.13.
Account for inverter-based resources with their limited, controlled fault current and vendor-specific negative-sequence behavior.
Document assumptions and update the model when the system changes.

How Keentel Engineering helps

Keentel Engineering performs short-circuit, protection and grounding studies for utilities, generators, industrial facilities, data centers and renewable energy projects from 4 kV to 765 kV.

Stage	Keentel scope	Outcome
Short-circuit studies	All fault types at every bus, with X/R corrections and future growth scenarios	Defensible equipment duty and ratings
Equipment evaluation	Breaker, switchgear, bus and cable duty checks under IEEE C37 standards	Identified overdutied equipment and upgrade plans
Grounding design	Neutral reactor and resistor sizing, effective grounding checks, IEEE 80 ground grid design	Safe step and touch voltages and controlled ground fault current
Protection and coordination	Phase and ground relay settings, CT selection and coordination studies	Selective, dependable protection
Arc flash studies	IEEE 1584 and NFPA 70E studies and labeling	Safer work practices and compliance
Interconnection and NERC support	Short-circuit models for interconnection studies, MOD-032 data and PRC-027 coordination	Accurate models and compliant documentation

Why clients choose Keentel Engineering

Fundamentals done right: complete sequence-network models, not shortcuts, so every fault type is evaluated correctly.
Studies tied to design: the same team specifies equipment, designs grounding and sets protection.
Utility, industrial and renewable experience: from 13.8 kV switchgear to 345 kV substations and inverter-based plants.
Licensed professional engineering: a Florida-registered firm with offices in Tampa, Austin, Sacramento and Baltimore, supporting projects nationwide.
Clear deliverables: reports and models that operations, maintenance and compliance teams can use.

The following are illustrative scenarios based on conditions typical of US utility, industrial and generation projects. They show how Keentel Engineering approaches fault current problems; site details are generalised and figures are rounded.

Case Study 1 — 138/13.8 kV substation: switchgear overdutied by SLG faults

Situation

A utility plans to replace a 138/13.8 kV substation transformer with a larger, lower-impedance unit. The original design checked the 13.8 kV switchgear only against three-phase fault current.

Analysis

Keentel's short-circuit study models all fault types with the new transformer. The three-phase fault remains within the switchgear rating, but the SLG fault at the solidly grounded 13.8 kV bus exceeds it by about 8%, and the double line-to-ground fault produces the highest ground current for the station ground grid.

Engineered solution

Keentel sizes a neutral reactor for the transformer that reduces SLG current below the three-phase value while keeping X0/X1 within effective grounding limits. The ground grid and feeder ground relay settings are re-evaluated for the new fault levels.

Outcome

The existing switchgear remains within its rating, avoiding replacement, and the ground grid continues to meet IEEE 80 step and touch voltage limits.

Case Study 2 — 345/138 kV substation: autotansformer addition and ground relay reach

Situation

A transmission owner adds a second 345/138 kV autotransformer with a delta tertiary at an existing substation.

Analysis

The new autotransformer and its tertiary significantly lower Z0 at both the 345 kV and 138 kV buses. Keentel's study finds that SLG fault current at the 138 kV bus now exceeds three-phase current, two 138 kV breakers are close to their interrupting limits, and ground directional overcurrent and distance relay settings on several 138 kV lines need revision because of changed zero-sequence current distribution and mutual coupling.

Engineered solution

Keentel recommends breaker replacements at the two critical positions, revised ground relay settings coordinated under NERC PRC-027 practice, and updated short-circuit models for MOD-032 submittals.

Outcome

All breakers operate within rating, ground protection remains selective, and the planning models reflect the new station configuration.

Case Study 3 — industrial cogeneration plant: generator grounding

Situation

An industrial plant adds a 13.8 kV, 25 MVA gas turbine generator directly connected to its main switchgear. The vendor's preliminary design shows a solidly grounded neutral.

Analysis

Keentel's study shows that the SLG fault current at the generator terminals would exceed the three-phase value by about 30%, exceeding the generator's design basis, and would add to the plant's already high ground fault duty.

Engineered solution

Keentel recommends low-resistance grounding of the generator neutral, coordinated with the plant's existing resistance-grounded system, and develops generator ground fault protection settings under IEEE C37.102.

Outcome

Ground fault current is limited to a controlled value, the generator operates within its design basis, and ground faults are detected and cleared selectively.

1. Does a three-phase fault always produce the highest current?
No. It usually does on lines and in much of the system, but an SLG fault produces more current wherever Z0 is lower than Z1, such as at grounded-wye transformer terminals, solidly grounded generators and transmission buses with several grounded transformers.
2. What determines fault current?
The prefault voltage and the effective sequence-network impedance seen by the fault. Each fault type connects the positive, negative and zero-sequence networks differently.
3. How is three-phase fault current calculated?
It equals line-to-neutral prefault voltage divided by positive-sequence impedance, or line-to-line voltage divided by √3 times Z1.
4. How is SLG fault current calculated?
It equals three times the line-to-neutral prefault voltage divided by the sum of Z1, Z2, Z0 and three times any fault impedance.
5. When does SLG current exceed three-phase current?
With Z1 equal to Z2, whenever Z0 is less than Z1. The maximum possible ratio, when Z0 approaches zero, is 1.5.
6. Why does a delta-wye transformer produce high SLG current on its wye side?
The delta winding provides a closed path for zero-sequence current, so the zero-sequence impedance seen at the grounded-wye terminals is roughly the transformer impedance alone. The positive-sequence impedance includes both the source and the transformer.
7. How is line-to-line fault current related to three-phase current?
With Z1 equal to Z2, line-to-line fault current is √3/2, or about 87%, of three-phase fault current.
8. Can a double line-to-ground fault produce more ground current than an SLG fault?
Yes. When Z0 is less than Z2, the ground current (3I0) for a double line-to-ground fault exceeds the SLG fault current. IEEE 80 ground grid design should consider this.
9. What is the correct double line-to-ground fault formula?
The positive-sequence current equals prefault voltage divided by Z1 plus the parallel combination of Z2 and Z0. Ground current equals 3Vφ Z2 divided by (Z1Z2 + Z1Z0 + Z2Z0). Phase currents require converting sequence currents back to phase quantities.
10. How does line length affect SLG fault current?
Overhead line Z0 is typically about three times Z1, so SLG current decreases faster than three-phase current as the fault moves away from the substation.
11. What is effective grounding?
A system is effectively grounded at a location when X0/X1 is 3 or less and R0/X1 is 1 or less. This limits overvoltage on unfaulted phases during ground faults.
12. How do neutral reactors reduce SLG current?
A neutral impedance adds three times its value to Z0. Even a small reactor can bring SLG current down to the three-phase level while keeping the system effectively grounded.
13. Why are large generators usually not solidly grounded?
Generator zero-sequence reactance is low, so solid grounding can produce SLG current above the three-phase value that the machine is designed for. Most large unit-connected generators use high-resistance grounding.
14. How does fault resistance affect fault current?
Fault resistance adds three times its value to the SLG impedance and reduces fault current. Maximum duty studies use bolted faults; protection sensitivity studies include fault resistance.
15. Which fault type should be used for breaker ratings?
The maximum of all fault types at the breaker location, corrected for X/R ratio according to IEEE C37.010 or C37.13.
16. How is X/R calculated for an SLG fault?
The effective X/R equals (2X1 + X0) divided by (2R1 + R0), using sequence reactances and resistances at the fault point.
17. Why does mutual coupling matter in ground fault studies?
Parallel transmission lines share zero-sequence magnetic coupling, which changes zero-sequence current distribution and can cause ground distance and directional relays to overreach or underreach.
18. How do inverter-based resources affect fault current?
Inverters limit fault current to roughly 1.0 to 1.5 times rated current, with negative-sequence behavior set by their controls. Their grounding transformers can still significantly affect zero-sequence current.
19. What NERC standards relate to short-circuit modeling?
MOD-032 covers model data for planning, including short-circuit data, and PRC-027 requires coordination of protection systems for faults, which depends on accurate fault current calculations.
20. What is the most common short-circuit study mistake?
Running only three-phase faults or omitting accurate zero-sequence data. This can leave equipment underrated for SLG faults and ground grids designed for the wrong current.

Links were current at publication (October 2026).

IEEE Std 551, Recommended Practice for Calculating AC Short-Circuit Currents in Industrial and Commercial Power Systems (Violet Book). IEEE.
IEEE Std C37.010, Application Guide for AC High-Voltage Circuit Breakers Rated on a Symmetrical Current Basis; IEEE Std C37.04 and C37.13. IEEE.
IEEE Std 80, Guide for Safety in AC Substation Grounding. IEEE.
IEEE Std C62.92 series, Guide for the Application of Neutral Grounding in Electrical Utility Systems. IEEE.
IEEE Std C50.12 and C50.13, Requirements for Salient-Pole and Cylindrical-Rotor Synchronous Generators. IEEE.
IEEE Std C37.110, C37.113, C37.91 and C37.102 protection application guides. IEEE.
NERC Reliability Standards MOD-032 and PRC-027. North American Electric Reliability Corporation.
J. L. Blackburn and T. J. Domin, Protective Relaying: Principles and Applications. CRC Press.

This article is general technical information for educational purposes. It is not engineering advice for any specific project and does not create a professional relationship. Impedances, fault currents and grounding values are illustrative; actual designs must use complete system data, current editions of applicable standards, equipment manufacturer ratings and project-specific engineering analysis, sealed by a licensed professional engineer where required.

Case studies are illustrative scenarios based on typical project conditions, not records of specific client projects. Figures are rounded and indicative.

IEEE, NERC, NFPA and other names are the property of their respective owners. Keentel Engineering is not affiliated with or endorsed by these organisations or any software or equipment vendor.

Office	Address	Phone
Head Office — Tampa	400 N Ashley Dr STE #2600, Tampa FL 33602	(813) 389-7871
Austin	5900 Balcones Drive STE 100, Austin TX 78731	(512) 591-0752
Sacramento	1401 21st St Ste R, Sacramento CA 95811	(916) 913-4524
Baltimore	306 W Redwood St STE 200, Baltimore MD 21201	(410) 225-2181

In 1995, Sonny Patel earned his Electrical Engineering degree from the University of Illinois. But degrees don't build legacies — action does.

For three decades, he has worked the power industry from every side of the table: 16 years as a utility engineer at Exelon/Commonwealth Edison; generation leadership across hydroelectric, industrial steam turbine, and a 9 GW renewable fleet; NERC Regional Entity Senior Compliance Engineer and Audit Team Lead, auditing some of the nation's largest utilities; and testing and commissioning lead on equipment up to 765 kV — the very top of the North American grid.Utility. Generator. Regulator. Consultant. Few engineers have seen all four seats. Fewer still have sat in them.

His experience spans nuclear, hydro, conventional generation, renewables, oil and gas, mining — and today's data centers, where he is authoring a three-book series on data center design. He is a Licensed Professional Engineer in six states and a Licensed Electrical Contractor in Florida (Unlimited EC) — he doesn't just design the work; he's qualified to stand behind its execution.Today, as Founder and CEO of Keentel Engineering, Sonny leads a nationwide team of engineers delivering substation design, power system studies, NERC compliance, and commissioning — done right, coast to coast.Three decades. Every side of the table. One standard: accountable engineering.

In 1995, Sonny Patel earned his Electrical Engineering degree from the University of Illinois. But degrees don't build legacies — action does.

Utility. Generator. Regulator. Consultant. Few engineers have seen all four seats. Fewer still have sat in them.

Today, as Founder and CEO of Keentel Engineering, Sonny leads a nationwide team of engineers delivering substation design, power system studies, NERC compliance, and commissioning — done right, coast to coast.Three decades. Every side of the table. One standard: accountable engineering.

Grid inertia and RoCoF comparison showing frequency response, inertial power, and grid stability aft

The three operating regions you have to design to

Resilience: designing CDUs to the facility Tier objective

Electrical engineering considerations

Commissioning a liquid-cooled data hall

How Keentel Engineering helps

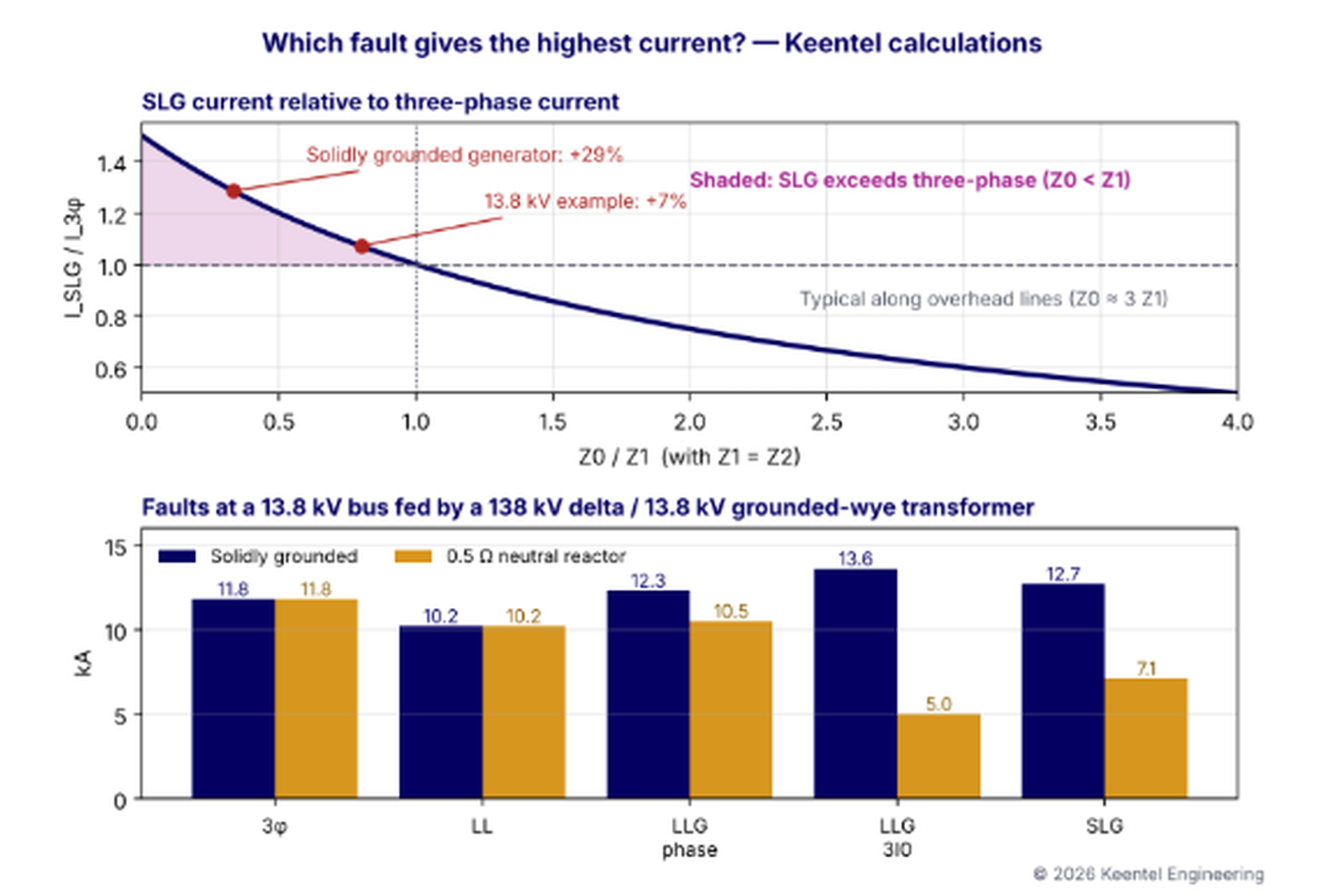

Which Fault Produces the Highest Current at a Bus? An Engineering Guide to Symmetrical Components and US Short-Circuit Practice

Part A — Which Fault Gives the Highest Current? At a Glance

The four shunt fault types

The core rule

Quick comparison (per unit, prefault voltage 1.0 pu)

Part B — Which Fault Produces the Highest Current at a Bus? An Engineering Guide to Symmetrical Components and US Short-Circuit Practice

Symmetrical components in brief

Fault current formulas

When does an SLG fault exceed a three-phase fault?

﻿

Worked example 1: 138/13.8 kV distribution substation

Worked example 2: 138 kV transmission bus

Worked example 3: solidly grounded 13.8 kV generator

Effective grounding

Fault duty and X/R ratio

﻿

Engineering implications

Practical short-circuit study checklist

How Keentel Engineering helps

Why clients choose Keentel Engineering

Part C — Case Studies

Case Study 1 — 138/13.8 kV substation: switchgear overdutied by SLG faults

Case Study 2 — 345/138 kV substation: autotansformer addition and ground relay reach

Case Study 3 — industrial cogeneration plant: generator grounding

Part D — Technical FAQ: Fault Types and Maximum Fault Current

1. Does a three-phase fault always produce the highest current?

2. What determines fault current?

3. How is three-phase fault current calculated?

4. How is SLG fault current calculated?

5. When does SLG current exceed three-phase current?

6. Why does a delta-wye transformer produce high SLG current on its wye side?

7. How is line-to-line fault current related to three-phase current?

8. Can a double line-to-ground fault produce more ground current than an SLG fault?

9. What is the correct double line-to-ground fault formula?

10. How does line length affect SLG fault current?

11. What is effective grounding?

12. How do neutral reactors reduce SLG current?

13. Why are large generators usually not solidly grounded?

14. How does fault resistance affect fault current?

15. Which fault type should be used for breaker ratings?

16. How is X/R calculated for an SLG fault?

17. Why does mutual coupling matter in ground fault studies?

18. How do inverter-based resources affect fault current?

19. What NERC standards relate to short-circuit modeling?

20. What is the most common short-circuit study mistake?

References and Further Reading

Disclaimer

Services

Let's Discuss Your Project

About the Author:

Sandip "Sonny" R. Patel, P.E.

IEEE Senior Member · Founder & CEO, Keentel Engineering

Leave a Comment

Related Posts

Head Office

Austin Office

Sacramento Office

Baltimore Office
