Available Fault Current, SCCR, and Interrupting Rating

Three Numbers That Decide Whether a Fault Is an Outage or an Incident — Why Only One of Them Is a Rating, Why It Moves, and Why the Equipment Never Tells You

1. Executive Summary

Three numbers govern what happens when a short circuit occurs in an electrical installation. Two of them are printed on the equipment. The third is a property of the power system, is printed on nothing, and changes over the life of the facility without anyone touching the gear.

The interrupting rating of a protective device — commonly expressed in kiloamperes and written as AIC or kAIC — states the fault current the device can interrupt. The short-circuit current rating of an assembly states the fault current the enclosure, bus, bracing, and internal components can withstand while a protective device clears. Available fault current is what the power system would actually deliver into a bolted fault at that point. The first two are ratings established by test. The third is a system condition established by calculation.

The design rule is simple to state and routinely violated in practice: available fault current must remain below the interrupting rating of every device that could be called on to interrupt it, and below the short-circuit current rating of every assembly that has to contain it. The reason it is violated is that available fault current drifts upward. A utility substation upgrade, a larger service transformer, a lower-impedance replacement transformer, a new feeder, added motor load, or on-site generation all lower system impedance and raise the fault current the existing equipment must survive. Nothing in the facility changes. Nothing alarms. The equipment ratings stay exactly where they were, and the margin quietly disappears.

The consequences of being wrong are categorically different from ordinary equipment failure. A device asked to interrupt beyond its rating may not interrupt at all: contacts weld, the arc is not extinguished, and the case can rupture. An assembly stressed beyond its short-circuit current rating fails structurally: bracing deflects, conductors melt, and the fault escalates across the bus. In both cases a routine trip becomes an arcing event, the clearing time extends by an order of magnitude, and the incident energy delivered to anyone standing in front of the equipment rises with it.

This paper works through the three numbers, the code basis, the mechanisms that move available fault current, how an assembly rating is actually determined, where series ratings help and where they trap, and what a short-circuit study must produce to be useful. It includes three illustrative case scenarios, a set of design and operating controls, and a twenty-question FAQ.

The sentence worth carrying out of this paper

Your equipment ratings are fixed at the moment of purchase. The number they have to survive is not.

A short-circuit study is not a one-time design deliverable. It is a statement about a condition that changes, and it needs to be revisited whenever the source, the transformer, the conductors, or the connected rotating and generating equipment changes.

2. Three Numbers, Three Different Questions

3. The Code Basis

The requirements are short, old, and unambiguous. Two adjacent articles in the National Electrical Code carry most of the weight, and a third creates the documentation duty.

3.1 Interrupting Rating

Equipment intended to interrupt current at fault levels must have an interrupting rating at nominal circuit voltage sufficient for the current available at its line terminals. Note the two qualifiers that get lost: the rating is voltage-specific, and the comparison is made at the device’s line terminals, not at the service or at some convenient upstream point.

3.2 Assembly Withstand and Component Coordination

Equipment intended to interrupt current at other than fault levels, and the total circuit impedance and other characteristics of the circuit, must be selected and coordinated so that the circuit protective devices can clear a fault without extensive damage to the electrical equipment of the circuit. This is the provision behind short-circuit current ratings: the assembly must survive long enough for the protective device to do its job.

3.3 The Documentation Duty

Service equipment other than at dwelling units must be field marked with the maximum available fault current, including the date the calculation was performed, and the calculation must be documented and made available. Critically, the marking must be re-verified when modifications to the electrical installation affect the maximum available fault current. That re-verification requirement is the code’s acknowledgement that the number moves — and it is one of the most commonly ignored requirements in the code.

3.4 Where SCCR Marking Is Required

Marking requirements appear across several equipment-specific articles: industrial control panels, motor controllers, air-conditioning and refrigeration equipment, industrial machinery, and elsewhere. The practical implication for a specifier is that a short-circuit current rating is something to require and verify on the submittal, not something to discover during inspection.

The two provisions in one sentence

Every device that might have to interrupt the fault must be rated to interrupt it, and every assembly that has to contain the fault must be rated to withstand it while that happens.

The first is a device-by-device check. The second is an assembly-by-assembly check. Passing one does not pass the other.

4. Clear Versus Withstand

The distinction between interrupting and withstanding is the conceptual core of the topic and deserves more precision than it usually gets.

Interrupting means actively stopping current flow: separating contacts, drawing and extinguishing an arc, and restoring insulation across the gap. It is an active, energetic process and the device must survive doing it.

Withstanding means enduring the mechanical and thermal effects of current flowing through, without failing, while something else performs the interruption. Bus bars experience electromagnetic forces proportional to the square of current, which is why bracing is the physical expression of a short-circuit current rating. Conductors and joints experience heating proportional to the square of current and the duration, which is why the withstand rating is meaningless without a clearing time assumption.

4.1 A Nuance in What "Survive" Means

North American molded-case circuit breakers are listed to a standard that verifies the device can interrupt at its rating and pass subsequent verification checks, but the standard does not require that the device remain in service afterwards. A breaker that has interrupted a fault near its full rating should be treated as suspect and evaluated before return to service.

The international standard for low-voltage circuit breakers makes this explicit by declaring two separate breaking capacities: an ultimate capacity, after which the device may not be suitable for continued service, and a service capacity, after which it remains usable. Equipment supplied to that standard may carry two different numbers, and specifications that reference only the larger one have specified a device that may be a one-time-use item at that duty. On projects with imported equipment or dual-listed products, this distinction belongs in the specification.

5. Why Available Fault Current Drifts Upward

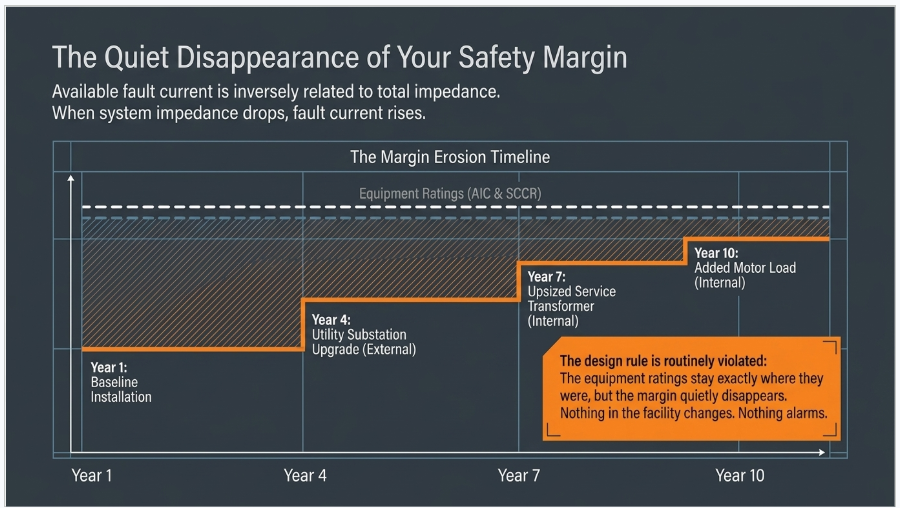

Available fault current is inversely related to the total impedance between the source and the fault. Anything that reduces that impedance raises the number. The following are the mechanisms, roughly in order of how often they surprise people.

• Utility system reinforcement. A new substation, an additional source transformer, reconductoring, or a network reconfiguration on the utility side raises available fault current at the service with no notification to the customer and no change on the customer premises.
• A larger service transformer. Fault current at the secondary scales roughly with transformer kVA for a given impedance. Upsizing a service to support new load raises the fault duty on every piece of equipment downstream.
• A lower-impedance transformer. A like-for-like kVA replacement with a lower percent impedance raises secondary fault current proportionally. Transformer impedance also carries a manufacturing tolerance, and a study performed at nameplate impedance without applying the tolerance understates the maximum.
• Shorter or larger conductors. Relocating equipment closer to the source, or upsizing feeders for voltage drop or ampacity, removes impedance and raises downstream fault current.
• Added motor load. Rotating machines contribute to fault current for the first several cycles at a multiple of their full-load current. A facility that has added significant motor horsepower has raised its first-cycle duty.
• On-site generation. A synchronous generator contributes fault current governed by its subtransient reactance and can contribute several times its rated current. Inverter-based sources contribute far less — typically a small multiple of rated current — but they are not zero and they must be represented correctly rather than assumed either way.
• Operating configuration. Closing a normally open tie, paralleling transformers, or operating with an alternate source in service changes the fault duty. A study performed only for the normal configuration has not evaluated the plant as it is actually operated.
• Utility data that was conservative in the wrong direction. Available fault current letters are planning values, and they change. A letter obtained during design and never refreshed is a design assumption with an expiry date nobody set.


6. What Failure Actually Looks Like

6.1 Beyond the Interrupting Rating

A protective device asked to interrupt more than it is rated for may fail in several ways, none of them benign. Contacts can weld closed, leaving the fault energised. The arc may not be extinguished within the interrupting chamber, allowing it to travel or to persist. The device housing can rupture, expelling ionised gas and molten material into the enclosure and initiating a phase-to-phase or phase-to-ground arcing fault across the bus. In every one of those outcomes the fault continues until an upstream device clears it, which takes substantially longer.

6.2 Beyond the Assembly Rating

An assembly stressed beyond its short-circuit current rating fails mechanically and thermally. Bus bracing deflects or fails, allowing conductors to move and contact each other. Insulators crack. Terminations and joints overheat and open. Doors and covers can be forced open by internal pressure. The characteristic outcome is escalation: a single-phase fault becomes a three-phase arcing fault in a confined space.

6.3 The Common Thread

Both failure modes convert a fault that should have been cleared locally in a few cycles into an event cleared remotely, much later, at much higher energy, with an operator potentially standing in front of the equipment. That is the mechanism by which an inadequate rating becomes a personnel injury rather than an equipment replacement.

7. The Arc Flash Consequence

The short-circuit study is not an end in itself. It is the input to the arc flash study, where the same currents are converted into incident energy at a working distance.

Incident energy is a function of arcing current and, crucially, of duration. Duration is determined by the protective device’s time-current characteristic at the arcing current present. Two consequences follow.

• A device that cannot interrupt the available fault current does not merely fail to protect the equipment — it removes the fast clearing that bounded the incident energy calculation. The energy is then set by whatever upstream device eventually operates, often at a delay measured in hundreds of milliseconds or seconds rather than cycles.
• Arcing current is lower than bolted fault current, and lower current does not always mean lower energy. A reduced arcing current can fall on a slower part of the device curve, producing longer clearing and higher incident energy. This is why arc flash calculations are performed at both the calculated arcing current and a reduced value, and the worse result governs.

The practical implication is that a facility with equipment operating beyond its interrupting rating has an arc flash study whose results are optimistic in a way the labels do not disclose. The labels are computed on the assumption that the protective devices work.

8. An Assembly Rating Is Set by Its Weakest Component

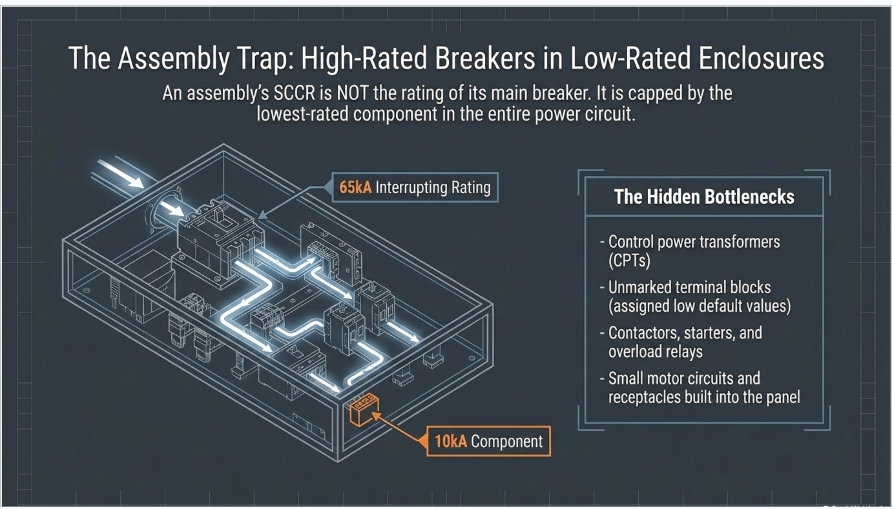

The most frequently misunderstood point in this subject is that the short-circuit current rating of an assembly is not the rating of its main protective device. It is determined by the entire power circuit, and it is capped by the lowest-rated component in that circuit.

The recognised analytical method for determining the rating of a control panel works through the power circuit component by component, identifies the lowest short-circuit current rating among them, applies the rules for feeder and branch circuit components, accounts for transformers and current-limiting devices, and arrives at a single assembly rating. Components with no marked rating are assigned default values from tables, and those defaults are often low.

The components that typically govern are not the ones anyone looks at:

• Control power transformers and their primary protection.
• Terminal blocks and distribution blocks without a marked rating.
• Contactors, starters, and overload relays, whose standalone ratings are frequently far below the breakers feeding them.
• Control relays, timers, meters, and instrument devices in the power circuit.
• Surge protective devices and their disconnecting means.
• Small motor circuits, receptacles, and lighting taps built into a panel.

This is why an assembly populated with high-rating breakers can carry a marked rating of a fraction of that value. The breakers can interrupt a great deal; the panel cannot withstand it. A specifier who requires a device interrupting rating but never requires an assembly rating has specified half the requirement.

A specification line that prevents a category of problems

Require the marked short-circuit current rating of every assembly to be stated on the submittal, at the actual system voltage, and to equal or exceed the available fault current from the study at that location — with the study performed before the submittal is approved.

Discovering an inadequate assembly rating at the submittal stage is a product selection change. Discovering it at inspection is a replacement.

9. Series Ratings: Where They Help and Where They Trap

A series combination rating allows a downstream device with an interrupting rating below the available fault current to be applied, on the basis that a specific upstream device will limit the energy reaching it. It is a legitimate and often economical technique, and it carries conditions that are frequently not met in practice.



• The combination must be a tested and recognised pairing of specific manufacturer devices, and the equipment must be marked to identify the combination. It is not a calculation an engineer performs at will for new equipment; the code permits engineering-supervised selection only for existing installations, under defined conditions.
• Substituting a device voids the rating. A like-for-like replacement breaker from a different manufacturer, or even a different frame from the same manufacturer, is not the tested device. This is the single most common way a valid series rating silently becomes invalid — during maintenance, years after commissioning, by someone with no reason to know.
• Motor contribution restricts applicability. Where motors are connected between the upstream and downstream devices, the contribution they inject downstream of the current-limiting device is not limited by it. The code restricts the use of series ratings where that motor contribution exceeds a defined small fraction of the downstream device’s interrupting rating.
• A series rating addresses interrupting duty, not assembly withstand. The components inside the enclosure still have to survive the let-through.
• A series rating is in direct tension with selective coordination. It works precisely because the upstream device operates, which is the outcome coordination exists to prevent. Where selective coordination is required — emergency systems, legally required standby, critical operations power — series ratings are generally not an available answer.


10. Current-Limiting Devices and Let-Through

A current-limiting device interrupts within the first half cycle, before the prospective fault current reaches its peak. Two quantities describe what actually reaches the downstream equipment: the peak let-through current, which drives mechanical stress, and the let-through energy, which drives thermal stress.



Applied correctly, current limitation is a powerful tool: it can protect downstream equipment on a let-through basis, reduce incident energy substantially, and make otherwise unworkable arrangements viable. Applied loosely, it produces two recurring errors. The first is treating current limitation as a general property rather than a characteristic that only applies above a threshold current — below that threshold the device is not current-limiting and the downstream equipment sees the full duty. The second is using published let-through data to justify an arrangement that has not been tested as a combination, which is a different claim from a recognised series rating.

11. What a Short-Circuit Study Must Actually Produce

A study that reports one number per bus is not a deliverable. The following is what a usable study contains, and what an owner should require in the scope of work.

1. Source data with provenance: the utility available fault current and system X/R ratio, with the date obtained and the contact or letter referenced. Where the utility provides a range or a planning maximum, the study should state which value was used and why.
2. Transformer data from nameplates, with the impedance tolerance applied in the direction that maximises fault current, not nominal impedance alone.
3. Conductor and bus impedances from as-built lengths and configurations rather than design drawings, where the two differ.
4. Rotating machine contribution: motors grouped and represented appropriately, and generators represented by subtransient reactance, with the contribution included in first-cycle duty.
5. Inverter-based source contribution represented as a current-limited source at the manufacturer’s configured limit rather than as an equivalent machine.
6. Multiple system configurations: normal, alternate source, tie closed, generator paralleled, and any maintenance configuration the facility actually uses.
7. Both momentary and interrupting duties, with the appropriate multiplying factors applied for the X/R ratio at each location and for the device class being evaluated.
8. A device-by-device evaluation table listing the equipment, its marked rating, the calculated duty, the percentage of rating, and an explicit pass or fail. This table is the deliverable; everything else supports it.
9. An assembly-by-assembly evaluation against marked short-circuit current ratings, separate from the device evaluation.
10. Identification of any series combination ratings relied upon, with the specific device pairing documented so that future replacements can preserve them.
11. Clear recommendations where duties are exceeded, with options and their consequences, rather than a bare statement of non-compliance.
12. The field marking content required at the service, with the calculation date.


12. Case Studies

]The following scenarios are composite and illustrative. They are constructed from patterns that recur across industrial, commercial, and mission-critical facilities to show how the failure develops and how it is caught. They do not describe any specific client, site, or project.

12.1 Case A — The Utility Upgrade Nobody Told the Facility About

Situation.  A manufacturing plant with a 480 V service and a main switchboard rated 42 kA, installed a decade earlier against a study showing approximately 35 kA available. The plant added no equipment and made no electrical modifications. The serving utility completed a substation reinforcement project in the area, adding a transformer and reconfiguring the distribution feeders.

What the study found.  A refreshed utility available fault current value, obtained during an unrelated arc flash update, was materially higher than the value used in the original design. Recalculation placed the duty at the main switchboard above its marked rating, and above the interrupting rating of the main and several feeder devices. No alarm had occurred, no protective device had operated abnormally, and nothing in the plant’s records indicated a change.

Exposure.  Every fault at or below the switchboard would have been an event the equipment was not rated to survive. The existing arc flash labels, computed on the assumption that the devices would clear normally, understated the energy that would actually have been delivered.

Remedy.  Options were evaluated against cost and outage duration: replacing the affected devices with higher-rated units, adding current limitation upstream, adding impedance in the service conductors, or negotiating with the utility for a source configuration that bounded the duty. The selected path combined device replacement at the main and a documented current-limiting arrangement for the feeders, followed by a reissued arc flash study and new labels.

Lesson.  The utility is not obliged to tell a customer that its available fault current has increased, and the customer’s equipment gives no indication. The only control is periodic re-verification of the utility source value and re-running the study when it changes.

12.2 Case B — Sixty-Five Kiloamp Breakers in a Ten Kiloamp Panel

Situation.  A packaged process skid arrived at a facility with a control panel supplied by the equipment vendor. The specification had required protective devices rated 65 kA, and the devices installed were indeed so rated. Available fault current at the point of connection was approximately 22 kA.

What the study found.  The panel’s marked short-circuit current rating was a small fraction of the device ratings. Working back through the power circuit, the governing components were a control power transformer arrangement and a group of unmarked terminal blocks, both of which carried low default values under the recognised determination method. The high-rated breakers were irrelevant to the assembly rating; the weakest component in the power circuit had set it.

Exposure.  A fault inside the panel would have exceeded its withstand capability. The breakers would have interrupted correctly; the enclosure and its internal components would not have survived intact while they did so. The failure would have been structural, not a failure to clear.

Remedy.  The vendor was required to re-rate the panel by substituting components with adequate marked ratings and to reissue the nameplate, verified against the determination method. An alternative considered and rejected was adding upstream current limitation, which would have worked but would have left the marked rating below the installed condition and created a documentation problem at every future inspection.

Lesson.  Specifying device interrupting ratings does not specify an assembly rating. Require the marked short-circuit current rating on the submittal, at the actual system voltage, and check it against the study before approval — particularly for vendor-supplied packaged equipment, where the electrical scope is often outside the design engineer’s direct control.

12.3 Case C — The Replacement Breaker That Voided the Rating

Situation.  A commercial facility had been designed using a recognised series combination rating: a current-limiting main device paired with downstream branch devices of lower interrupting rating, marked on the equipment as a tested combination. The design was correct and compliant when installed.

What the study found.  During a study refresh triggered by the addition of on-site generation, a walkdown found that several branch devices had been replaced over the years with units of the same frame and trip rating from a different manufacturer. The replacements were adequate as devices in isolation but were not the tested pairing. The series combination that made the installation compliant no longer existed.

Exposure.  The affected branch devices had interrupting ratings below the available fault current, with no valid basis for applying them. Separately, the new on-site generation raised first-cycle duty, and the operating scheme allowed the generator to be paralleled with the utility during transfer — a configuration the original study had never evaluated.

Remedy.  The branch devices were restored to the tested combination, the equipment marking was verified against the as-installed devices, the study was rerun for every operating configuration including the paralleled case, and a maintenance procedure was issued requiring that any protective device replacement be checked against the series rating documentation before installation.

Lesson.  A series rating is a property of a specific pair of devices, not of a rating class. It is lost silently during maintenance by people acting reasonably. Preserving it requires the combination to be documented somewhere a maintenance technician will actually encounter it, and requires the study to be rerun whenever a source is added or an operating configuration changes.

13. Design and Operating Controls

1. Obtain utility available fault current and X/R in writing at design, record the date and the source, and re-request it at defined intervals and before any project that touches the service.
2. Perform the short-circuit study before equipment selection, not after, and use it to specify ratings rather than to check them.
3. Apply transformer impedance tolerance in the direction that maximises fault current, and evaluate the operating configurations the facility actually uses, including tie-closed and generator-paralleled cases.
4. Specify both the device interrupting rating and the assembly short-circuit current rating, at the actual system voltage, and verify both on the submittal.
5. Require assembly ratings on vendor-supplied packaged equipment, and treat that requirement as a submittal review item rather than an inspection item.
6. Build margin deliberately. Selecting equipment at the next rating step above the calculated duty is inexpensive at purchase and is the only practical hedge against the number drifting upward.
7. Document any series combination ratings relied upon, on the equipment and in the maintenance procedures, so that a future replacement does not void them.
8. Field mark the service with the maximum available fault current and the calculation date, and re-verify when modifications affect it.
9. Re-run the study on defined triggers rather than on a calendar alone: any utility source change, transformer replacement, service upsize, significant motor or generation addition, feeder reconfiguration, or change in normal operating configuration.
10. Reissue the arc flash study and labels whenever the short-circuit study changes. The labels are downstream of these numbers and are wrong the moment the numbers move.

14. Reading the Comparison Correctly

Side-by-side comparisons of these three quantities are useful and usually correct in outline. Four refinements are worth adding, because each changes what an engineer does.

Available fault current is not one number

It is a value at a point, for a configuration, at a moment in the fault. It differs at every bus, differs between normal and alternate configurations, and differs between the first cycle and the interrupting instant. A single service-level figure is a starting point, not an answer.

The assembly rating is not the main breaker rating

It is capped by the weakest component in the power circuit, which is routinely a terminal block, a control transformer, or a starter rather than a breaker. High-rated devices in a low-rated enclosure is one of the most common findings in equipment review.

"Clear and survive" needs a footnote

North American listing verifies the device can interrupt at its rating and pass subsequent checks; it does not guarantee continued service afterwards. The international standard separates ultimate and service breaking capacities explicitly. On projects with dual-listed or imported equipment, specify which is required.

Series ratings and current limitation change the answer, and they have conditions

Both are legitimate and both are conditional — on tested pairings, on marking, on motor contribution limits, on threshold currents above which limitation actually occurs, and on whether selective coordination is required. Confirm by study and by listing documentation, not by catalogue let-through curves alone.
