Accurate Power System Load Flow Studies for Reliable Grid Operation

Power systems must operate within strict electrical limits to ensure safe, reliable, and efficient delivery of electricity. Load Flow Analysis, also known as Power Flow Analysis, is one of the most fundamental studies used by power system engineers to evaluate the operating conditions of electrical networks.

Blank white square.

At Keentel Engineering, we perform advanced Load Flow Analysis studies for transmission systems, substations, renewable energy plants, industrial facilities, and utility networks. Our engineering team uses industry-standard simulation tools to analyze how electrical power flows through the grid, identify potential system constraints, and develop engineering solutions to maintain system reliability.

Load flow studies provide essential information about voltage levels, power flows, reactive power requirements, system losses, and equipment loading, enabling utilities and developers to design and operate power systems safely and efficiently.

Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

Request a Load Flow Study Proposal

Keentel – Software Capabilities FAQ
Engineering Tools

Our Software Capabilities

PSS®E PSS®E PSS®E
ETAP ETAP ETAP
PSCAD PSCAD PSCAD
PowerWorld PowerWorld PowerWorld
SKM SKM PTW SKM PTW
PSS®E Power System Simulator for Engineering
General FAQs
What is PSS®E software?
PSS®E (Power System Simulator for Engineering) is a power system simulation software developed by Siemens for analyzing and planning electrical transmission networks. It allows engineers to model large-scale power systems and perform detailed studies related to grid reliability and system performance.
What is PSS®E used for in power system studies?
PSS®E is used for transmission planning, interconnection studies, contingency analysis, stability simulations, and grid expansion planning. Utilities and consultants use it to evaluate how electrical networks behave under different operating conditions.
Who uses PSS®E software?
PSS®E is used by electric utilities, transmission planners, system operators, renewable energy developers, engineering consulting firms, and research institutions involved in power system planning and reliability analysis.
Can PSS®E be used for renewable energy integration studies?
Yes. PSS®E supports modeling of inverter-based resources such as solar plants, wind farms, and battery energy storage systems to analyze their impact on grid stability and transmission system performance.
Why is PSS®E widely used in transmission planning?
PSS®E is widely used because it supports very large power system models, advanced dynamic simulations, and automated analysis workflows, making it suitable for complex transmission network planning studies.
Technical FAQs
How does PSS®E perform contingency analysis?
PSS®E evaluates system reliability by simulating outage scenarios such as transmission line failures, generator trips, or transformer outages and identifying voltage violations or thermal overloads.
What types of dynamic simulations can be performed in PSS®E?
PSS®E supports transient stability analysis, generator dynamics simulation, renewable inverter modeling, and disturbance response studies.
What is PV and QV analysis in PSS®E?
PV and QV analysis are used to evaluate voltage stability margins and determine the system's ability to maintain acceptable voltage levels under increasing load conditions.
How does PSS®E support large power system models?
PSS®E uses optimized numerical algorithms and sparse matrix techniques that allow engineers to simulate electrical networks with up to 200,000 buses.
Can PSS®E simulations be automated?
Yes. PSS®E provides extensive Python APIs that allow engineers to automate contingency studies, batch simulations, and large-scale grid analysis workflows.
See all FAQs about PSS®E
ETAP Electrical Power System Engineering Platform
General FAQs
What is ETAP software?
ETAP is an electrical power system engineering software platform used for designing, simulating, analyzing, and operating electrical networks across industrial, utility, and commercial systems.
What types of studies can be performed in ETAP?
ETAP supports power flow analysis, short circuit studies, arc flash analysis, protection coordination studies, harmonic analysis, and dynamic stability simulations.
What industries use ETAP software?
ETAP is used by electric utilities, renewable energy plants, data centers, oil and gas facilities, industrial manufacturing plants, and infrastructure projects.
What is the ETAP Electrical Digital Twin?
The ETAP Electrical Digital Twin is a virtual representation of a real electrical network that enables engineers to simulate and monitor system performance before implementing changes in the physical system.
Why is ETAP widely used for electrical engineering studies?
ETAP provides an integrated platform for design, simulation, monitoring, and optimization of electrical systems, allowing engineers to analyze system behavior and improve operational reliability.
Technical FAQs
How does ETAP perform short circuit analysis?
ETAP calculates fault currents using international standards such as ANSI/IEEE C37 and IEC 60909 to evaluate equipment ratings and protection system requirements.
What is ETAP arc flash analysis?
Arc flash analysis calculates incident energy levels and safety boundaries based on standards such as IEEE 1584 and NFPA 70E to improve electrical safety.
How does ETAP perform protection coordination studies?
ETAP uses Time-Current Characteristic (TCC) curves to evaluate the coordination between relays, breakers, and fuses to ensure selective protection during faults.
Can ETAP simulate renewable energy systems?
Yes. ETAP allows engineers to model solar PV systems, wind generators, battery energy storage systems, and microgrids.
What dynamic simulations can be performed in ETAP?
ETAP dynamic simulations evaluate system behavior during disturbances such as generator trips, faults, motor starting events, and switching operations.
See all FAQs about ETAP
PSCAD Electromagnetic Transient Simulation
General FAQs
What is PSCAD software?
PSCAD is an electromagnetic transient (EMT) simulation software used to analyze fast electrical and electromagnetic phenomena in power systems.
What is PSCAD used for?
PSCAD is used for HVDC studies, converter modeling, renewable inverter simulations, lightning surge analysis, and electromagnetic transient studies.
Who typically uses PSCAD?
PSCAD is used by utilities, renewable developers, equipment manufacturers, engineering consulting firms, and research institutions.
Why is PSCAD important for renewable energy studies?
PSCAD allows engineers to simulate inverter-based resources and analyze complex electromagnetic interactions within modern power systems.
What types of systems can PSCAD model?
PSCAD can model transmission networks, HVDC systems, renewable plants, power electronic converters, and protection systems.
Technical FAQs
What is electromagnetic transient simulation?
EMT simulation analyzes high-frequency electrical phenomena that occur in power systems during switching events, lightning strikes, and converter operations.
How does PSCAD model transmission lines?
PSCAD models transmission lines using distributed parameter models that capture traveling wave behavior and electromagnetic interactions.
What simulation time steps are used in PSCAD?
Typical EMT simulations use time steps ranging from microseconds to tens of microseconds depending on system complexity.
Can PSCAD simulate HVDC systems?
Yes. PSCAD provides detailed models for line-commutated converters (LCC) and voltage source converter (VSC) HVDC systems.
How does PSCAD simulate inverter-based resources?
PSCAD uses detailed converter control models to simulate grid-forming and grid-following inverter behavior.
See all FAQs about PSCAD
PowerWorld Power System Visualization & Simulation
General FAQs
What is PowerWorld software?
PowerWorld is a power system simulation and visualization software used to analyze electrical transmission networks.
What is PowerWorld Simulator?
PowerWorld Simulator is an interactive tool used to perform power flow analysis, contingency analysis, and voltage stability studies.
Who uses PowerWorld software?
PowerWorld is used by utilities, transmission planners, power system operators, consultants, and universities.
What types of studies can be performed in PowerWorld?
PowerWorld supports power flow analysis, contingency analysis, optimal power flow studies, voltage stability analysis, and fault analysis.
What makes PowerWorld unique?
PowerWorld provides interactive visualization tools such as animated one-line diagrams and geographic system displays.
Technical FAQs
How does PowerWorld perform contingency analysis?
PowerWorld simulates outage scenarios and identifies violations such as overloaded lines or low voltage conditions.
What numerical methods are used for power flow analysis?
PowerWorld typically uses Newton-Raphson algorithms to solve large power system models efficiently.
What is PV and QV analysis in PowerWorld?
PV and QV curves evaluate voltage stability limits and identify potential voltage collapse scenarios.
What is Optimal Power Flow (OPF)?
OPF determines the optimal generation dispatch while maintaining system constraints and minimizing operating costs.
How large of a system can PowerWorld simulate?
PowerWorld can simulate electrical networks with up to approximately 250,000 buses.
See all FAQs about PowerWorld
SKM PowerTools Electrical Engineering Design & Safety
General FAQs
What is SKM PowerTools software?
SKM PowerTools is an electrical engineering software platform used for power system design, analysis, and safety evaluation.
What types of studies can SKM perform?
SKM supports load flow analysis, short circuit studies, arc flash analysis, protection coordination, harmonic analysis, and grounding system studies.
What industries use SKM PowerTools?
SKM is widely used in utilities, industrial plants, data centers, oil and gas facilities, and commercial electrical infrastructure projects.
What is SKM CAPTOR used for?
CAPTOR is SKM's protective device coordination module used to analyze relay, breaker, and fuse coordination using time-current curves.
Why is SKM widely used for electrical system analysis?
SKM provides integrated modules that allow engineers to perform multiple electrical studies within a single software platform.
Technical FAQs
How does SKM perform short circuit analysis?
SKM calculates fault currents using ANSI and IEC standards and evaluates symmetrical and asymmetrical fault conditions.
What is arc flash analysis in SKM?
Arc flash analysis determines incident energy levels and hazard boundaries to improve electrical safety and comply with standards such as IEEE 1584.
How does SKM perform load flow analysis?
Load flow analysis calculates voltage levels, power flows, and system losses within electrical networks.
Can SKM simulate harmonic distortion?
Yes. The HI_WAVE module evaluates harmonic distortion caused by non-linear loads and power electronic devices.
How does SKM evaluate protection coordination?
SKM analyzes protective device operation using time-current curves to ensure proper fault isolation.
See all FAQs about SKM PowerTools

What Is Load Flow Analysis?

Load flow analysis is a mathematical study used to determine the steady-state operating conditions of an electrical power system.

The study calculates key electrical parameters across the network, including:

Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

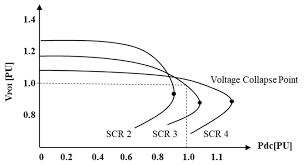

Voltage magnitude and angle at each bus

Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

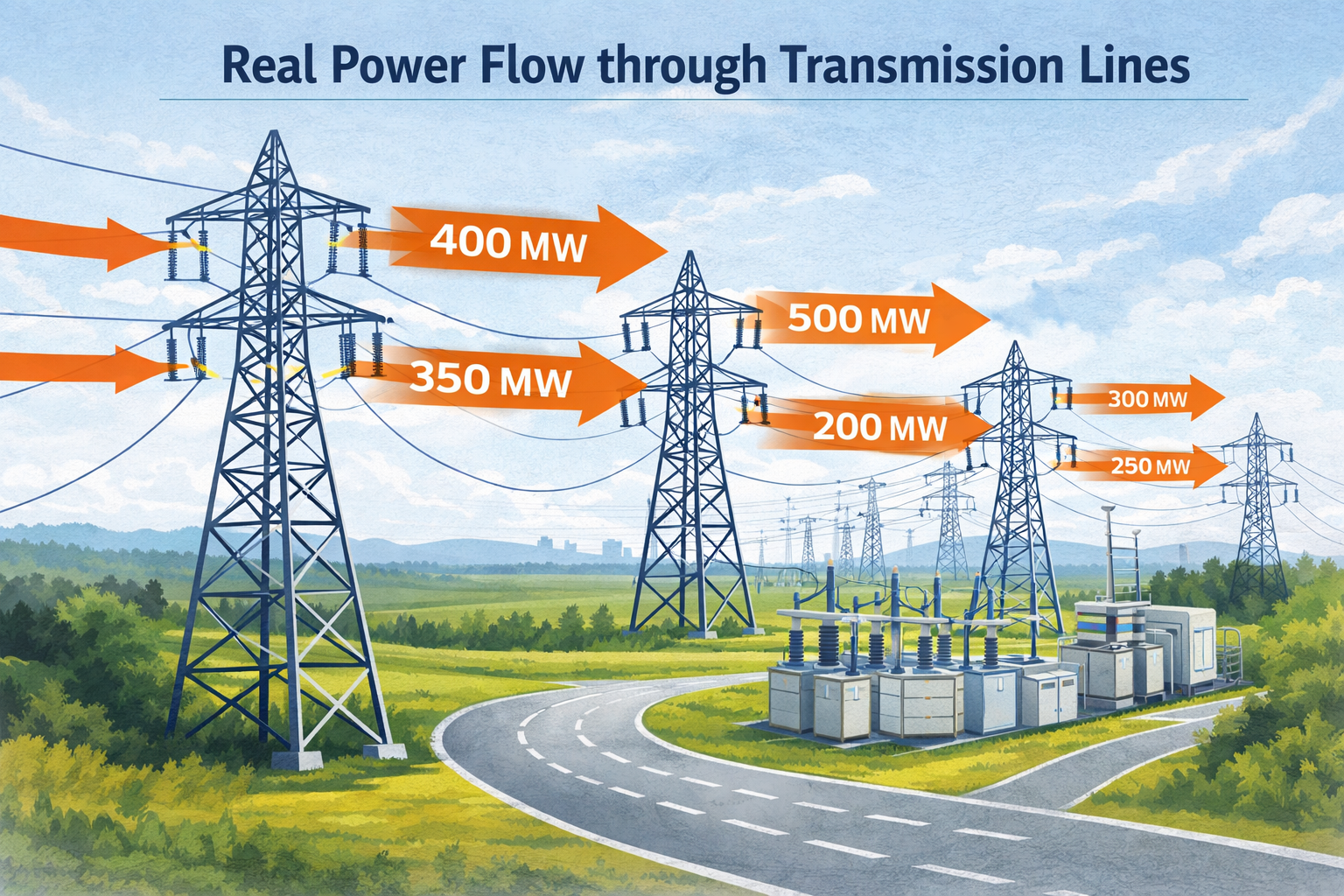

 Real power flow through transmission lines

Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

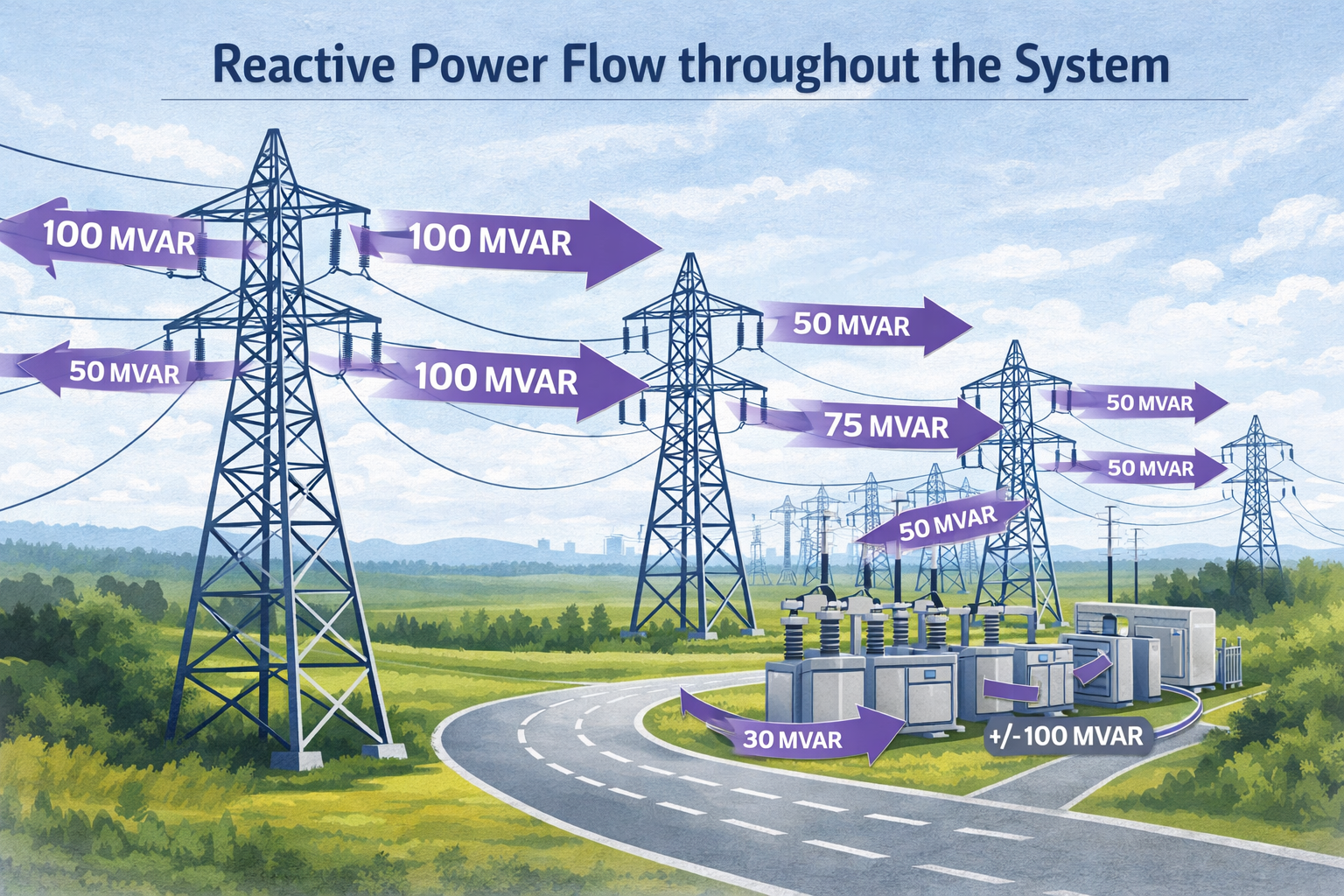

Reactive power flow throughout the system

Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

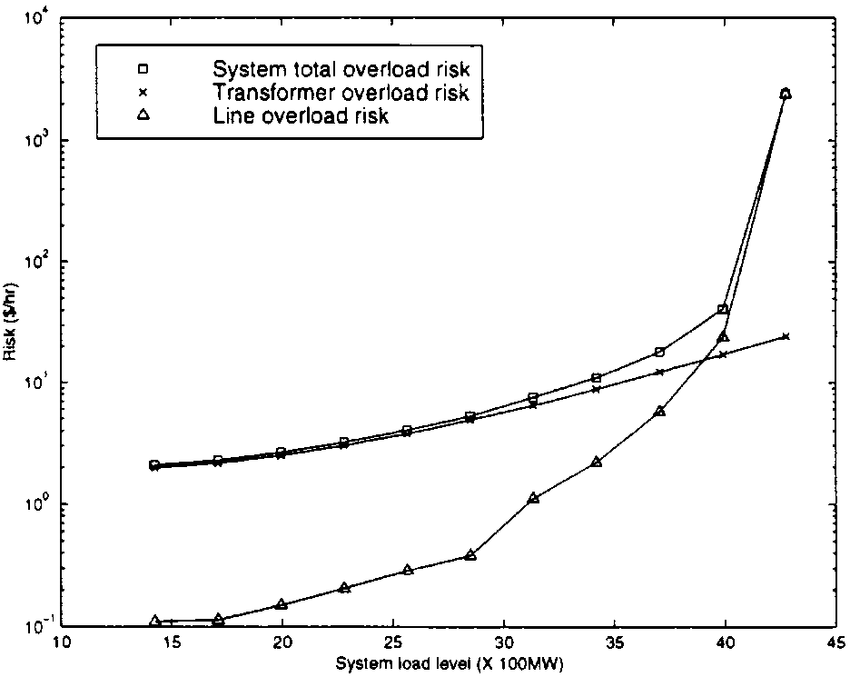

Transformer loading levels

Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

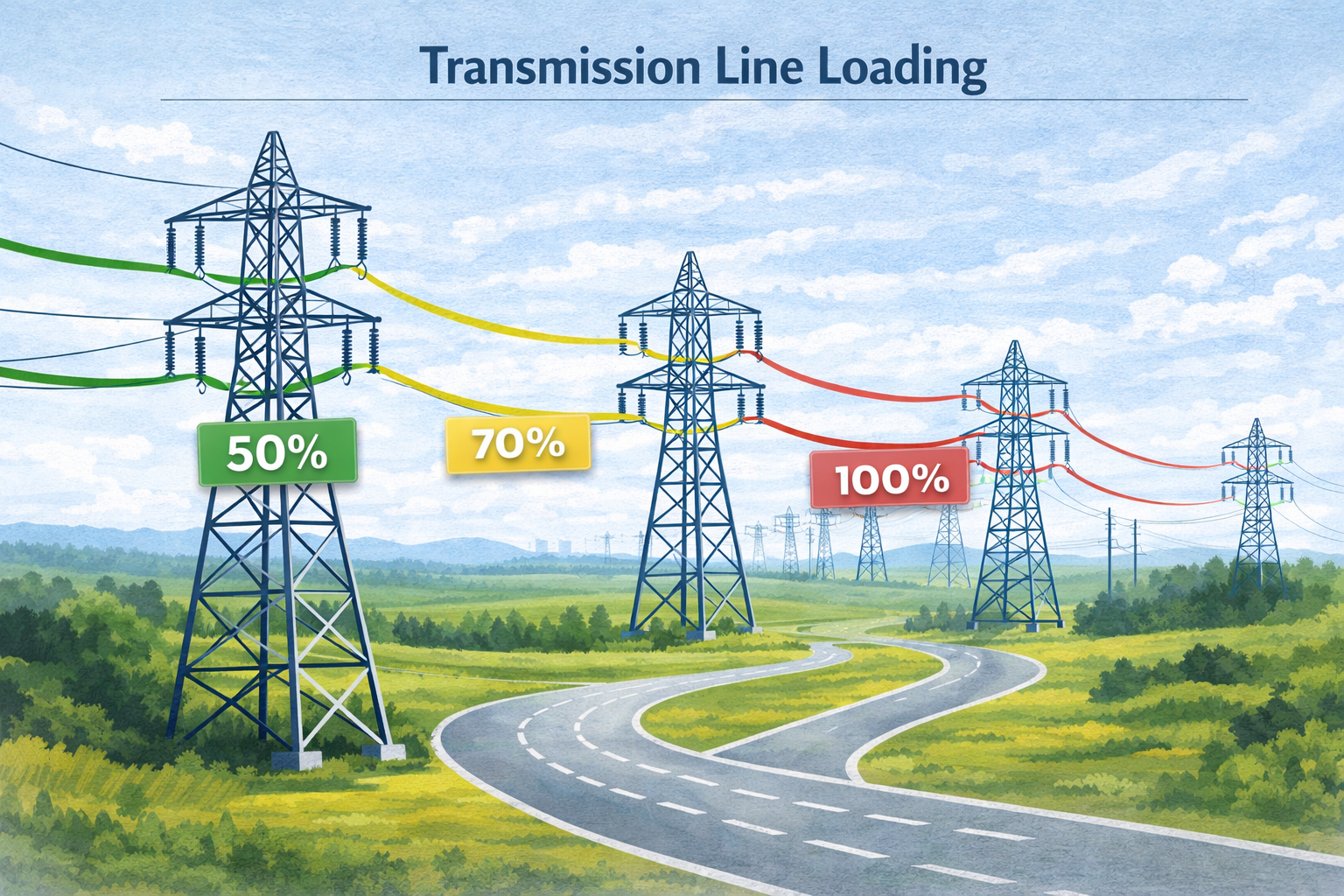

Transmission line loading

Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

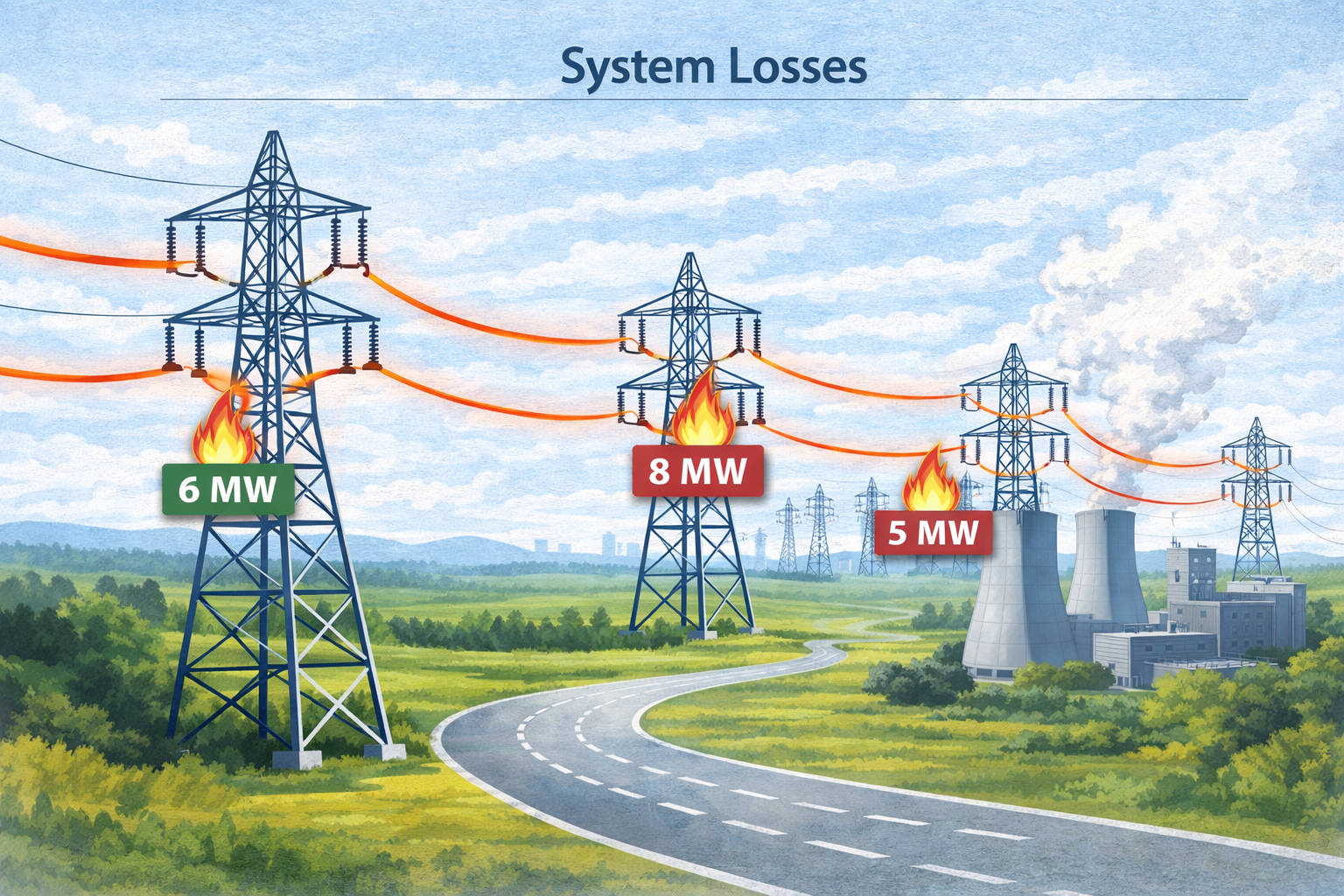

System losses

These results allow engineers to understand how electricity flows through the grid and ensure that system components operate within their allowable limits.

Load flow analysis is essential for both existing power system operation and future system planning.

Two technicians in hard hats inspect electrical panel, one using a laptop in a control room.

Importance of Load Flow Studies in Power Systems

Electrical power systems are complex networks consisting of generators, transmission lines, transformers, substations, and loads. Without proper analysis, changes in generation or load conditions could cause system instability or equipment overloads.

Load flow analysis helps engineers:

  • Maintain acceptable system voltage levels
  • Prevent equipment overloads
  • Identify reactive power deficiencies
  • Evaluate system losses
  • Support transmission planning decisions
  • Analyze renewable energy integration impacts

These studies form the foundation for many other power system analyses such as short circuit studies, stability studies, contingency analysis, and protection coordination studies.

Load Flow Study Methodology – Keentel Engineering

Load Flow Study Methodology

At Keentel Engineering, load flow analysis follows a structured engineering approach to ensure accurate and reliable results.

01
System Data Collection
Network parameters & equipment data
02
Power System Modeling
PSS®E / PowerWorld simulation
03
Base Case Analysis
Voltage, loading & reactive margin
04
Scenario Analysis
Peak, light load & outage cases
System Data Collection
Step 01 System Data Collection

The study begins by gathering electrical system data to develop reliable simulation models.

  • Transmission line parameters
  • Transformer ratings & impedances
  • Generator operating characteristics
  • Load profiles
  • Substation configurations
  • Reactive power compensation
Accurate system data is critical for developing reliable simulation models.
Power System Modeling
Step 02 Power System Modeling

Using the collected data, engineers develop a detailed network model using advanced power system simulation software.

  • Transmission lines
  • Transformers
  • Generators
  • Substations
  • Loads
  • Reactive power devices
This model forms the basis for performing load flow calculations.
Base Case Load Flow Analysis
Step 03 Base Case Load Flow Analysis

The base case represents the normal operating condition of the power system.

  • Voltage levels at each bus
  • Line loading levels
  • Transformer loading
  • Reactive power requirements
The base case establishes the reference operating condition used to evaluate system performance.
Scenario Analysis
Step 04 Scenario Analysis

Load flow analysis is performed for multiple operating scenarios to confirm system performance across all expected conditions.

  • Peak load conditions
  • Light load conditions
  • High renewable generation scenarios
  • Equipment outage conditions
This analysis ensures that the system can operate safely under a wide range of operating conditions.
Types of Load Flow Studies – Keentel Engineering

Types of Load Flow Studies

Load flow studies are performed for many different power system applications.

Transmission System Load Flow Analysis
01
Transmission System Load Flow Analysis
Transmission load flow studies evaluate high-voltage transmission networks to determine whether the system can safely transfer power between generation sources and load centers. These studies are critical for grid planning and reliability assessment.
  • Transmission line overloads
  • Voltage violations
  • Reactive power deficiencies
  • Transmission losses

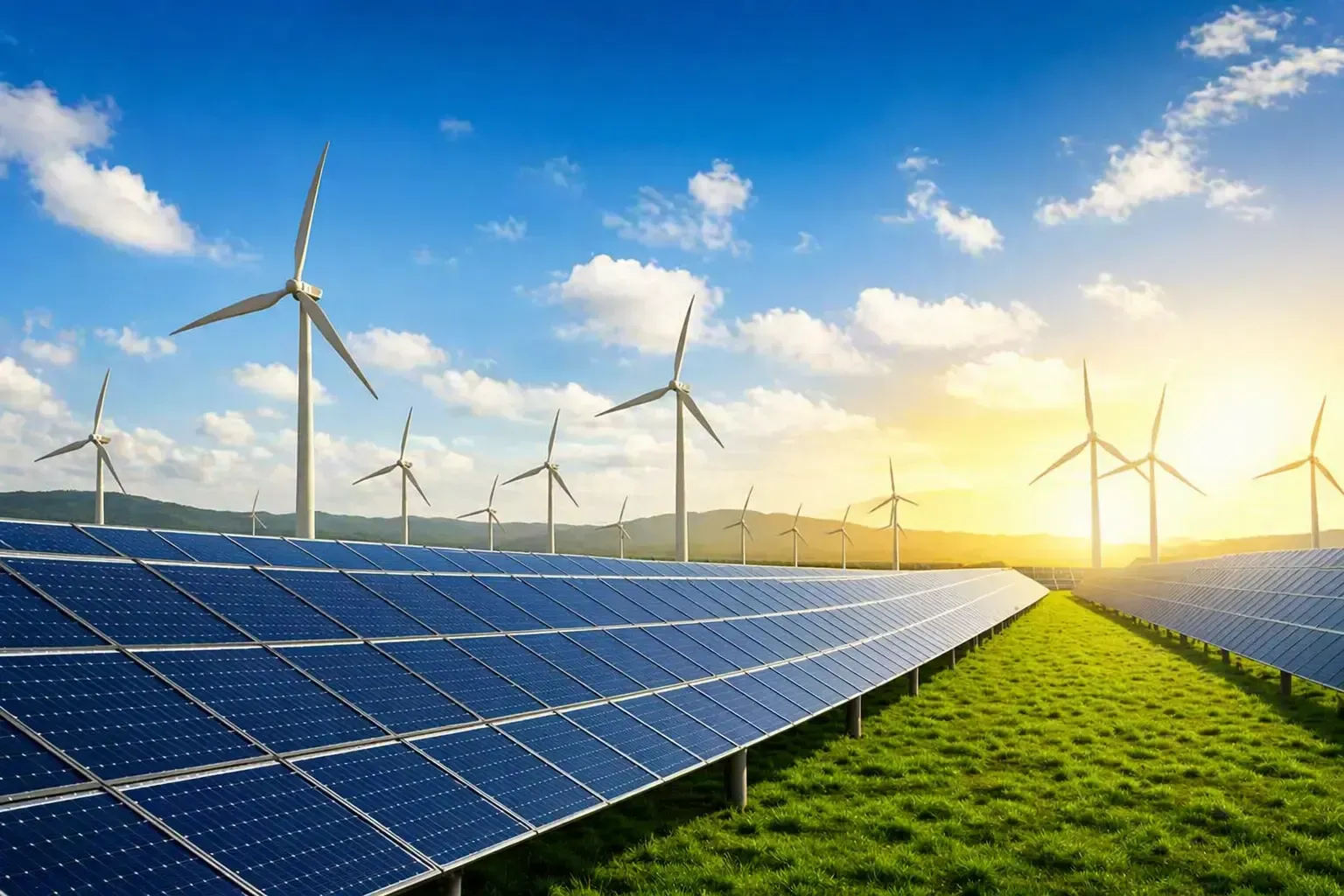

Renewable Energy Interconnection Studies
02
Renewable Energy Interconnection Studies
When new renewable generation such as solar or wind farms is connected to the grid, load flow analysis is required to evaluate the impact on the transmission system and ensure projects can integrate safely.
  • Impact on transmission line loading
  • Voltage regulation issues
  • Reactive power requirements
  • Potential grid congestion
Substation Load Flow Analysis
03
Substation Load Flow Analysis
Substation load flow studies evaluate the performance of electrical substations under various operating conditions, ensuring substations operate safely within their design limits.
  • Transformer loading limits
  • Bus voltage levels
  • Power flow through bus configurations
  • Reactive power compensation needs
Industrial Power System Load Flow Studies
04
Industrial Power System Load Flow Studies
Large industrial facilities require load flow studies to evaluate internal electrical distribution systems. Load flow analysis is essential for designing reliable industrial power systems.
  • Ensure proper equipment sizing
  • Evaluate voltage drop across feeders
  • Identify potential overloads
  • Improve power system efficiency
Voltage Control and Reactive Power Studies
05
Voltage Control and Reactive Power Studies
Reactive power is essential for maintaining voltage stability across the power system. Load flow analysis helps determine the right voltage control and compensation strategy — ensuring proper reactive power management and improving overall system stability.
  • Reactive power requirements
  • Capacitor bank sizing
  • Reactor requirements
  • Voltage control strategies
Software Tools – Load Flow Analysis – Keentel Engineering

Software Tools Used for Load Flow Analysis

Keentel Engineering uses industry-standard simulation platforms for performing load flow studies — allowing engineers to simulate complex power systems with thousands of buses and electrical components.

PSS®E
PSS®E
14+ Years
Siemens Platform
PowerWorld
PowerWorld
10+ Years
Power Flow & Viz
PSLF
8+ Years
GE Vernova
DIgSILENT PowerFactory
DIgSILENT
8+ Years
PowerFactory
SKM PowerTools
SKM PowerTools
6+ Years
Power Analysis
ETAP
ETAP
10+ Years
Power System Design
These advanced software platforms allow engineers to simulate complex power systems with thousands of buses and electrical components — supporting both steady-state and dynamic load flow analysis across all voltage levels.
Benefits of Load Flow Analysis – Keentel Engineering

Benefits of Load Flow Analysis

Organizations benefit from load flow studies in several ways — from improved reliability to regulatory compliance and long-term grid planning.

Top Benefit
Improved System Reliability
Load flow analysis identifies potential overloads and voltage problems before they occur — protecting infrastructure, reducing downtime, and ensuring the system operates safely and reliably across all operating conditions.
01
Operations
Efficient System Operation
Engineers can optimize generation dispatch and reactive power control — improving overall system efficiency and reducing unnecessary operating costs across the transmission network.
Grid Planning
Support for Grid Planning
Load flow studies provide essential information for transmission planning and expansion projects — helping utilities and developers make informed, data-driven infrastructure investment decisions.
Clean Energy
Renewable Energy Integration
These studies ensure that renewable generation can be integrated without causing system violations — confirming that solar, wind, and BESS resources connect safely and reliably.
Standards
Regulatory Compliance
Load flow analysis supports compliance with grid codes and reliability standards — reducing regulatory exposure and ensuring all system performance requirements are met and documented.

Why Choose  Keentel Engineering

Keentel Engineering provides advanced power system analysis services supported by decades of engineering experience in transmission and distribution systems.

Our engineers offer:

Person in crosshairs. Fo F

Expertise in HV, MV, and EHV power systems

Person icon with a badge of honor. Expe Exp E Ex

Advanced power system modeling capabilities

Black and white starburst icon with a star in the center. Qual Q

Experience with utility and ISO planning requirements

Magnifying glass with a diamond, circle, triangle, and hexagon.

Deep understanding of NERC reliability standards

A black shield icon with a white checkmark inside, representing security or verified status.

Practical engineering solutions for complex power system challenges

We work closely with utilities, renewable developers, and industrial clients to provide accurate, reliable, and actionable load flow analysis results.

Let's Discuss How to Optimize Your Next Project

Submit

Power lines silhouetted against a sunset with orange, yellow, and blue hues.

Contact Keentel Engineering

If your organization is planning a new power project, evaluating system performance, or integrating renewable energy, Keentel Engineering can provide comprehensive load flow analysis services to support your project.

Our engineers deliver accurate simulations and engineering recommendations that help ensure safe and reliable power system operation.

Two technicians in yellow hardhats working on electrical equipment, one using a laptop.
Power lines silhouetted against a sunset with orange, yellow, and blue hues.

Our Clients

Serving utilities, EPCs, developers, and infrastructure organizations supporting critical power systems nationwide.

Power lines silhouetted against a sunset with orange, yellow, and blue hues.
Load Flow Analysis FAQs – Keentel Engineering

Frequently Asked Questions

Load flow analysis calculates voltage levels, power flows, and reactive power across an electrical power system under steady-state conditions.

It helps ensure that electrical systems operate safely without exceeding equipment limits or causing voltage problems.

Both terms refer to the same analysis used to evaluate electrical power flows in a network.

System data includes transmission line parameters, transformer ratings, generator data, load values, and reactive power devices.

Common software tools include PSS®E, PowerWorld, PSLF, ETAP, SKM, and DIgSILENT PowerFactory.

A base case represents the normal operating condition of the power system used as a reference for analysis.

Bus voltage represents the voltage magnitude and phase angle at each node in the power system.

Reactive power supports voltage levels and helps maintain stable power system operation.

Voltage violations occur when system voltage falls outside acceptable limits due to heavy loading or insufficient reactive power.

Transmission losses represent the electrical energy lost as heat when power flows through transmission lines.

Yes, load flow analysis is commonly used to evaluate solar and wind interconnection impacts.

It evaluates whether transformers operate within their rated capacity during system operation.

Voltage drop analysis evaluates how voltage decreases across transmission lines or distribution feeders.

Utilities, renewable developers, industrial plants, and power system planners rely on load flow studies.

Utilities typically update load flow studies annually or when system conditions change significantly.

Power System Studies – Technical Blogs

Load flow analysis and power flow studies in electrical power systems
Load Flow Analysis and Studies in Electrical Power Systems
Grid code compliance wind farms ride through reactive power
Grid Code Compliance for Wind Farms: A Technical Overview for Electrical Engineers
Importance of electrical power system studies and analysis
The Importance of Electrical Power System Studies and Analysis
Substation engineering design protection and system studies
Substation Engineering Case Studies: Design, Protection & System Studies
Metropolitan power system development trends 2025
Review of Large City & Metropolitan Area Power System Development Trends in 2025
Power system analysis importance for BESS owners
Why Is Power System Analysis Important for BESS Owners?
Information management inverter based resources IBR technical guide
Information Management for Inverter-Based Resources (IBRs): A Technical Guide
Transmission engineering solutions ComEd PJM territories
Transmission Engineering Solutions in the ComEd and PJM Territories
Power trends 2025 New York electric grid analysis
Power Trends 2025 — Navigating the Future of New York’s Electric Grid
Advancing power system design practices IEEE PES TR 126
Advancing Power System Design Practices with IEEE PES TR 126
Harmonic studies offshore wind power systems
Understanding Harmonic Studies in Offshore Wind Power Systems
Change management process in power systems operations and planning
Change Management Process in Power Systems: A Vital Link Between Operations and Planning
Comprehensive power system analysis industrial reliability safety
Comprehensive Power System Analysis – Industrial Reliability & Safety
Energy sector integration impact on modern power grids CIGRE TB 973
Energy Sector Integration and Its Impact on Modern Power Grids — Technical Perspective
Advanced power system modeling long term resource planning
Advanced Insights into Power System Modeling for Long-Term Resource Planning
Utility interconnection critical for renewable power plants
Why Is Utility Interconnection Critical for Renewable Power Plants?
Keentel engineering power pulse newsletter April 2025
Keentel Engineering Power Pulse Newsletter – April 2025 Edition
Synchrophasor technology monitoring controlling power system stability
How Can Synchrophasor Technology Be Utilized for Monitoring and Controlling Power System Stability?
Renewable power plants prevent electrical grid failures
How Can Renewable Power Plants Prevent Electrical Grid Failures?
Design stability power system projects NERC reporting deadlines
Ensuring Design Stability in Power System Projects — Best Practices & NERC Deadlines
FERC RM22 12 000 Order 901 bulk power system compliance modeling
FERC RM22-12-000; Order No. 901 Explained — Engineering & Compliance Implications
